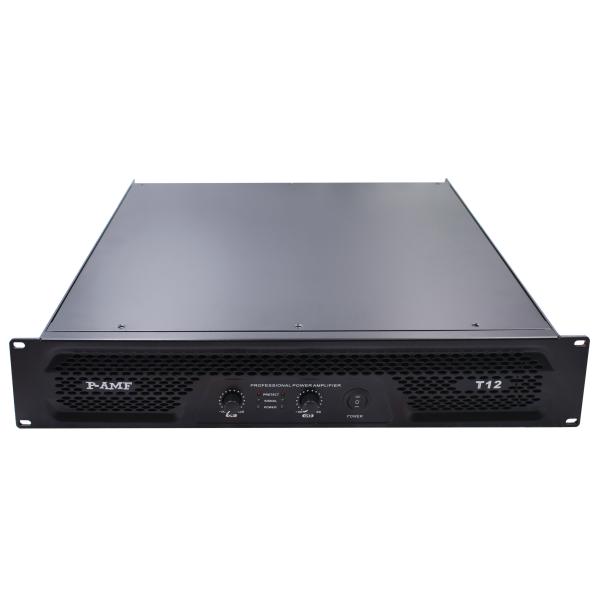

T12 from 2 X 1200W professional power amplifier black in Class A
Description
1,Biasing: The output transistors or tubes of a Class A amplifier
are biased such that they are always conducting, even when there is
no input signal. This ensures that the amplifier is always ready to
amplify the input signal.
2,Linearity: Class A amplifiers are known for their excellent
linearity. They provide low distortion and faithful reproduction of
the input signal, making them suitable for high-fidelity audio
applications.
3,Efficiency: Class A amplifiers are not very efficient in terms of
power consumption. Since the output devices are always conducting,
even when there is no signal, they consume a significant amount of
power. This inefficiency results in heat generation, which often
requires the use of heat sinks or cooling mechanisms.amplifier's
status.
Quick Detail
| Model | T12 |
| 8ΩStereo Power | 2×1200W |
| 4ΩStereo Power | 2×1800W |
| 8ΩBridge Mono Power | 3600W |
|
Frequency Response | 20Hz-20KHz(±0.5dB) |
| THD,1KHz/8Ω | ≤0.05% |
Noise A-weighting | ≥102dB |
Damping Coefficient | ≥300 |
Slew Rate | ≥10V/uS |
Input Sensitivity | 0.775V |
Input Impedance(Equilibrium/Disequilibrium) | 20KΩ/10KΩ |
Output Type | Class A |
Cooling |
Non-grading fan speed |
Protection | DC / short circuit / overload / overheat protection / distortion
pressure line / boot volume fade in |
|
Input | Balanced input XLR female socket / balanced and connected XLR male
socket |
Output | Speakon(NL4) |
Panel | Power switch / independent channel volume control knob / power
indicator / signal indication / peak clipping indication /
protection indication |
Backplane |
Mode switch |
| Dimension | 482×429.5×88(mm) |
