T12 from 2 X 1200W professional power amplifier for outdoor
activities,church and large conference room
Description

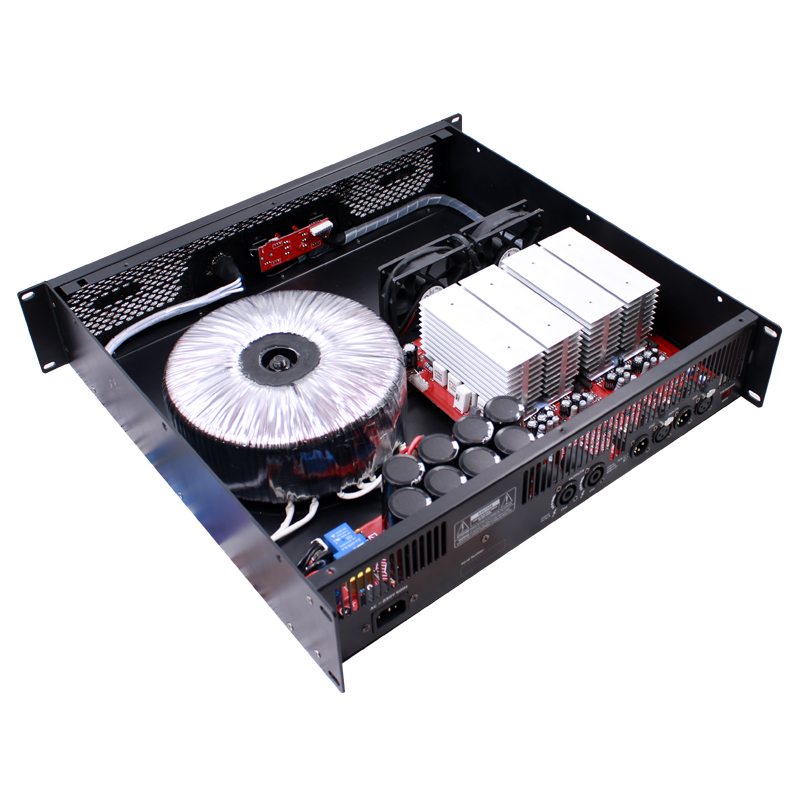

The newly developed T-series amplifier is a high-performance,
high-efficiency, high-power amplifier with a new collector output
circuit.This product adopts stepless speed-shifting fan with T-type
heat sink, and the power tube is directly attached to the radiator,
which dissipates heat in the first time, improves the service life
of the whole machine, has good heat dissipation effect and the
highest working efficiency.This product adopts the patch process
and the whole board layout, thus reducing the connection of the
cable, making the interior of the product very clean and elegant,
and also greatly improving the stability of the product. This
product has comprehensive protection functions: including the
unique startup sound of this product, power soft start, DC
protection, short circuit protection, overheat protection, overload
protection and so on.
Quick Detail
| Model | T12 |
| 8ΩStereo Power | 2×1200W |
| 4ΩStereo Power | 2×1800W |
| 8ΩBridge Mono Power | 3600W |
|
Frequency Response | 20Hz-20KHz(±0.5dB) |
| THD,1KHz/8Ω | ≤0.05% |
Noise A-weighting | ≥102dB |
Damping Coefficient | ≥300 |
Slew Rate | ≥10V/uS |
Input Sensitivity | 0.775V |
Input Impedance(Equilibrium/Disequilibrium) | 20KΩ/10KΩ |
Output Type | Class A |
Cooling |
Non-grading fan speed |
Protection | DC / short circuit / overload / overheat protection / distortion
pressure line / boot volume fade in |
|
Input | Balanced input XLR female socket / balanced and connected XLR male
socket |
Output | Speakon(NL4) |
Panel | Power switch / independent channel volume control knob / power
indicator / signal indication / peak clipping indication /
protection indication |
Backplane |
Mode switch |
| Dimension | 482×429.5×88(mm) |
Advantage Of Factory
Our company was established in 1998, specializing in the
development, production, and sales of audio electronic products for
over 20 years. Complete equipment, advanced production technology,
multiple high-efficiency assembly lines, semi-automatic production,
ensuring quality and quantity. With strong technology and advanced
management experience, perfect after-sales service (for example:
after-sales troubleshooting, maintenance consulting, spare parts
replacement, etc.) based on the forefront of the audio industry,
dedicated to new and old customers for a better tomorrow.
